Description – 12kW Medium-wave Infra-red Process Heater module with switches

Infra-red Industrial Process Heating Infra-red (radiant) heating is simple, energy efficient and flexible. The product is heated directly by energy radiated from a high-temperature emitter without the need to heat large amounts of air.

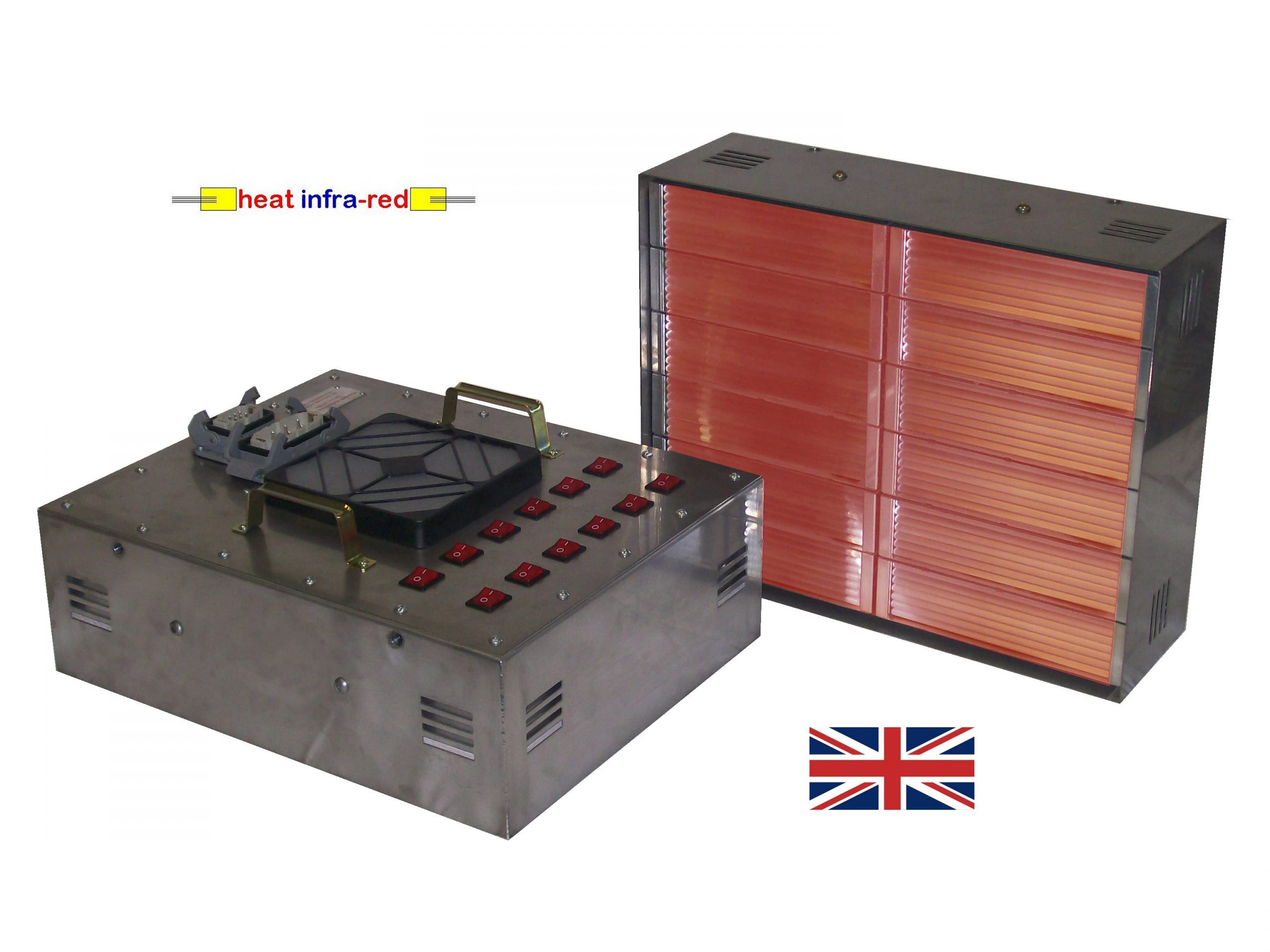

This 12kW switched module consists of 12 individual 1kW heating cassettes in a 400mm x 500mm stainless steel housing with a case cooling fan, lifting handles and 12 rocker switches. The module is supplied with chassis plugs for power and interlocks and is designed for use with the HEAT INFRA-RED Burst Fire Controller and lead set available separately.

Applications

• The HEAT INFRA-RED range of infra-red heaters can be used for a variety of applications:
• Drying and curing of water-based and solvent-based coatings
• Drying textiles
• Bonding using thermoplastic and thermosetting materials
• Curing powder coatings
• Preheating castings and mouldings
• Plastic Moulding
• Curing sealant

 Features and Benefits

• 12kW of medium-wave Infra-red
• Rapid heat-up time: 1 minute to 85% power, 2 minutes to full power from cold. Very responsive to power control when pre-warmed.
• 400mm x 500mm of heating area depending on the distance from the substrate.
• 12 rocker switches to the rear of the module can individually switch each of the 12 heating cassettes.
• Chasis plugs to the rear of the module for rapid disconnection of power and interlocks. Designed to be used in conjunction with power controller and lead set available separately.
• Ideal for conveyorised or static process systems.

Specification

• Voltage: 415V 3-phase AC
• Current: 17A single phase
• Wattage: 12 x 1kW medium-wave infra-red element – cassette type FSQ1000
• Heater dimensions: 400mm x 500mm x 150mm

We can manufacture this product to specific size requirements.  Please call 0115 937 2727 for more information.
