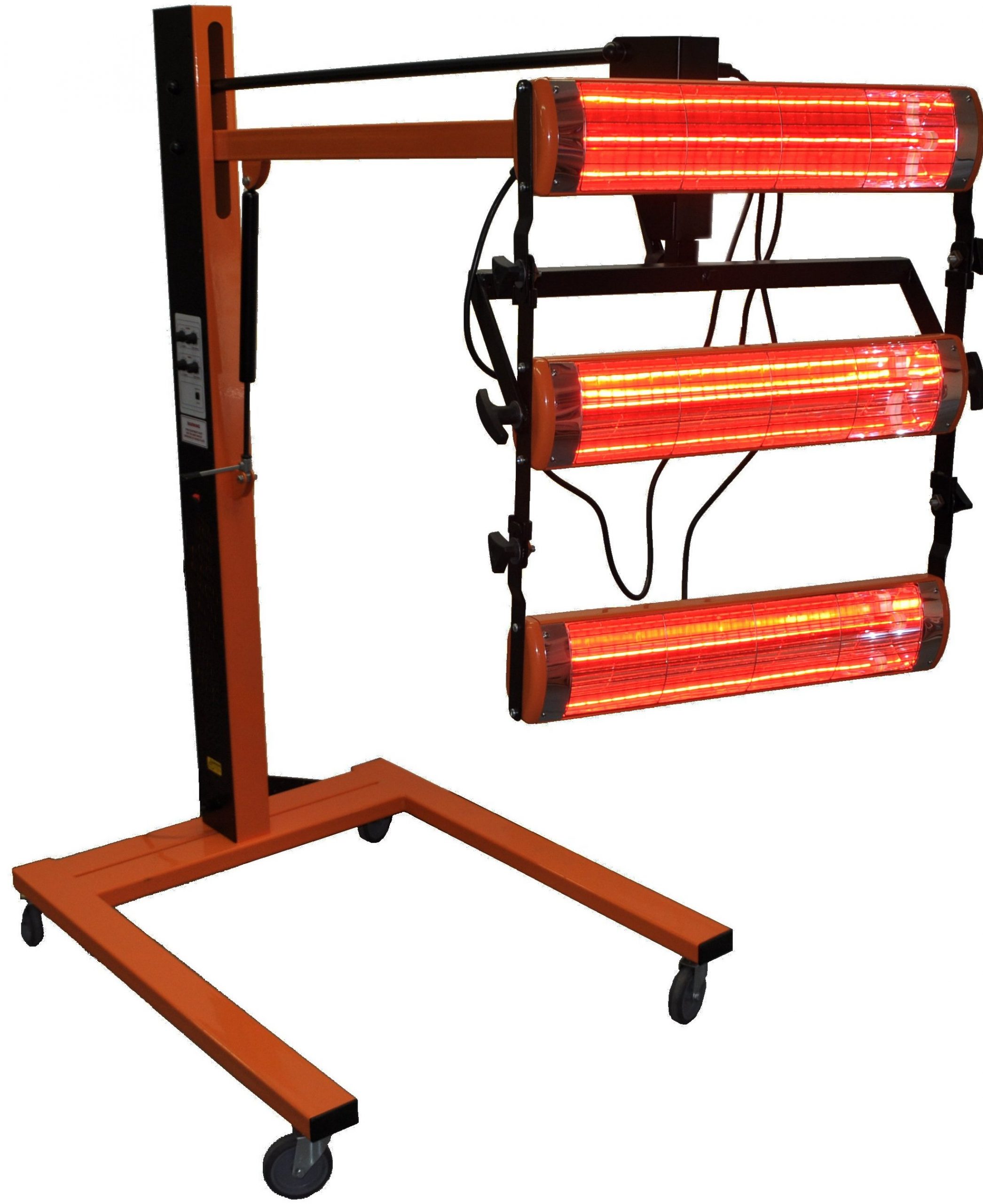

The VLP30 was originally manufactured as model HLP1000 and has three 1 KW short-wave heating elements, fitted into three individual cassettes.
This flexible system allows each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage.
Height adjustment is made using the high performance locking gas strut, offering a near weightless movement to the cassette support arm.
The VLP range utilise 1 & 1.5kW glare control lamps, configured in individual cassettes to yield up to 6kW of drying heat. The lamps emit short wave infrared heat which is ideal for fast response paint drying. This flexible system allows each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage.
Twin 99 minute electronic programmable timers on both Flash and Bake settings
Temperature settable on both Flash and Bake Cycle
3 pre-set memory functions.
When operating unit can display the temperature, time and setting of both Flash and Bake cycles.
Features and Benefits
Average Curing Specification:
Filler / Stopper 4 – 6minutes
Primer 6 – 8minutes
Top coat 10 – 12minutes
Area coverage 800mm x 1000mm
Minimum operating distance – 500mm
Max vertical curing height 2030mm
Max horizontal curing height 1800mm
220/240Volt 3KW 50Hz single phase 12.50amps
