4.5kW Large Horse Equestrian Infra-red Heating System with Controller

£650.00Including VAT

Three 1.5Kw Summerglow Heaters and 6kW variable controller which can be used to vary the intensity of the heat output from all three heaters.  Please note that here is no facility on this bundle to time the heaters.

£650.00Including VAT

7 in stock



The Leisure Range of Heating Equestrian Heating Systems and Equine Solariums

Our equestrian heating systems are designed to heat your horse or pony with short wavelength infra-red using the very latest technology on the market.  Infra-red is known to have many benefits in equestrian heating.  The obvious one is to rapidly dry off your horse or pony after workout or washing but there are many more benefits.

Infra-red can help improve blood circulation and the excellent heat penetration helps to produce vitamin D, an essential vitamin for healthy skin and muscles.  Using the infra-red for heat therapy, it can assist the recovery from an injury, help reduce stiffness after workout and generally improve the health and well-being of your horse. ​

All of or equestrian heating systems are fitted with ‘Anti Glare’ gold coated Infrared Lamps to minimise the brightness on the horses eyes

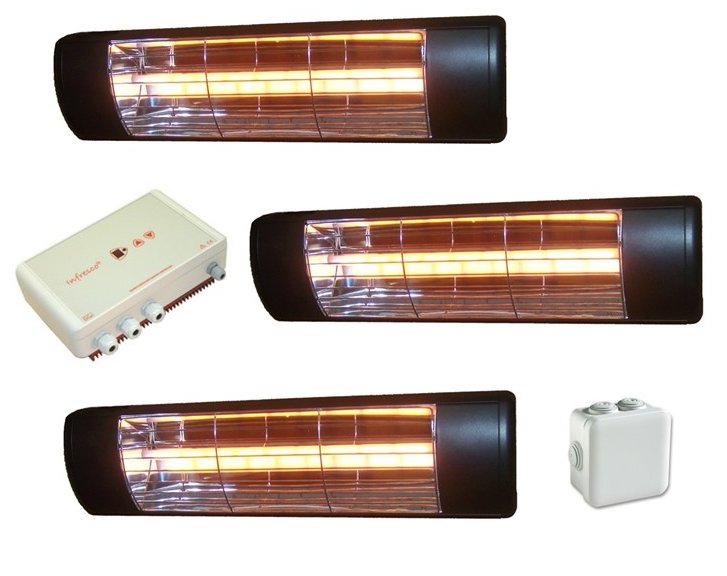

This equestrian heating system comprises THREE 1.5kW infra-red heaters ONE junction box and a variable controller.  It is designed to heat larger horses where one heater is above the horse and one heater is either side.  The system comes as a kit and will require hard wiring in your stable or drying area.  Each of these waterproof heaters is fitted with an anti-glare gold coated infra-red emitter and is rated at IP55 water and dustproof.  The system is designed for use in stables, stalls or hose-down areas where the horse can stand and benefit from the radiant heat source.

The Equestrian heaters can be attached to a vertical surface such as a wall, beam or post and can also be mounted facing straight down from chains (not supplied) or by using an optional ceiling stand-off.

The system comes complete with fully waterproof controller enabling the operator to select the heat output from the three heaters from 0 – 100%.  The controller has an in-built soft start mechanism to prevent inrush current and nuisance tripping.


Robust metal heater construction

Uses up-to-date infra-red technology

Efficient and cheap to run

Waterproof and designed for use in stables and hose-down areas

No fumes or smell

No noise

Instant heat-up


Anti glare lamps to reduce brightness

Can improve horses muscle suppleness before exercise

Helps improve blood circulation

Used as heat therapy can assist recovery from injury

Promotes relaxation and recovery

Helps dry off your horse or pony after washing


Product Specification

Each Heater:

Dimensions: width 480mm, height 160mm approx

Voltage: 230V 6.5A

Total Wattage: 3 x 1.5kW.  4.5kW total load.

Element Type: Linear Short-wave. Gold anti-glare coating. The lamp is fully replaceable.

Lead Length: Provided with 1.8 metres of cable.

Infra-red Controller:

Voltage: 230V 26A Max

Wattage: 6kW Max

Output: 0 – 100% in ten stepped settings via touch button on the front of the unit.  A red dgital readout gives a visual indication of power setting.

This system is designed and part manufactured in England. By buying this product you are supporting British industry.
