Description

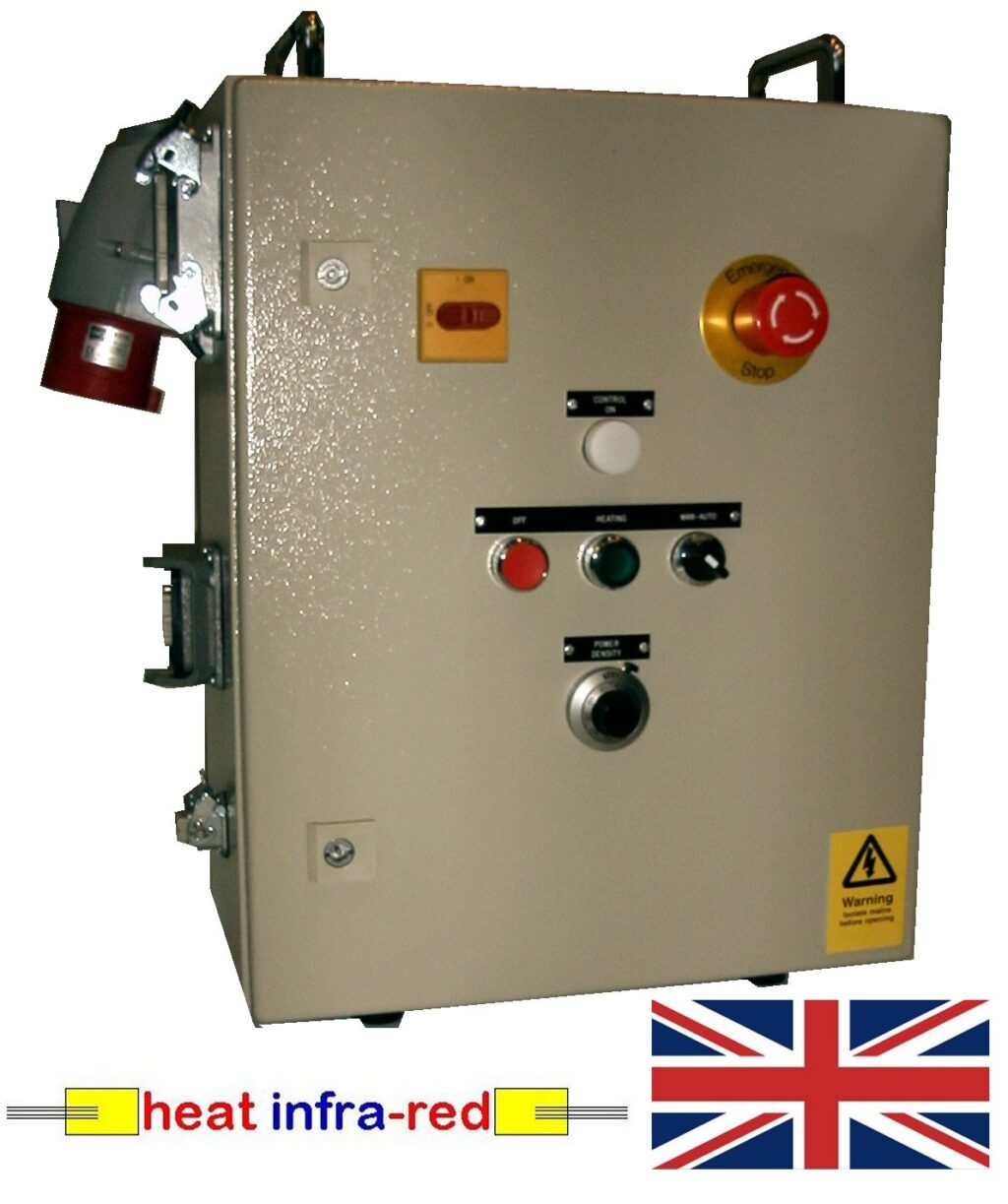

This versatile 3-phase Burst Fire Controller enables you to control infra-red heating panels from 0–100% power using a simple ten-turn potentiometer. The burst-fire action controls the overall power while maintaining the wavelength of infra-red. A separate circuit feeds the heater cooling fan while an interlock circuit facilitates the use of product sensors to automatically energise the control panel. This controller can be used with many of our 3 phase ‘Heat Infra-red’ range of standard infra-red heating modules.

This unit is built to industrial standards and is designed for industrial and commercial use.  It is not recommended for domestic use.

Features and Benefits

0 – 100% control or up to 24kW of infra-red heating.

Option for feedback control via k-type thermocouple

Lead set available at extra cost

Carry handles for easy transport.



Specification

Voltage: 415v 3-phase

Current: 34A Three phase

Wattage: 24kW Max load

We can manufacture this product to specific requirements.  Please call 0115 937 2727 for more information.
